Channel7™ from Performance Technologies is a comprehensive hardware and software Signaling System 7 (SS7) MTP-2 platform that provides telecom equipment manufacturers and applications developers with a baseline hardware/software solution for the creation of SS7 applications and systems.

The combined Channel7 hardware/software solution reduces time to market by providing a field proven foundation for the integration of MTP-3 networking layers and subsequent upper level SS7 stack products. Channel7’s unique design architecture eliminates the amount of time needed to integrate diverse hardware and software elements at the physical and link layers.

Designed as the integral part of a total SS7 solution, Channel7 delivers the highest density, performance and configurability for telecom developers and upper level stack vendors when compared to other SS7 MTP-1/MTP-2 level offerings.

Benefits/Features

A Tightly Integrated SS7 MTP-2 Software and Hardware Solution for Telecom System Developers	Critical baseline technology for the creation of SS7 applications and systems
A Comprehensive MTP-1 and MTP-2 Solution	A T1/E1 WAN controller board fully embedded with field proven SS7 MTP-2 link layer functionality
Maximum “Per-Span” Link Density	Supports full span link density over T1/E1 lines (24 or 31 links)
Configurable Link Density Counts	4 links, 8 links, 12 links, 24/31 (full span) links
Extensive System Scalability	Channel7’s distributed processing architecture allows the addition of SS7 “processors” without compromising overall host performance
Open, Fully Documented API	Easy integration of Channel7 to the MTP-3 networking layer of any upper layer SS7 stack
Ideal Data Link Layer for:	SS7 Signalling Gateways Home Location Registers (HLR) Visitor Location Registers (VLR) Service Control Points (SCP) Service Switching Points (SSP) Signal Transfer Points (STP)
Operating System Support	Solaris® “ftSAFE” driver Linux®

Configurability and Scalability

Channel7 is a highly configurable, scalable and high performance solution for developing SS7 network equipment. System designers have the option of choosing link configurations of 4, 8, 12, or 24/31 SS7 channels depending on the requirements of the target system.

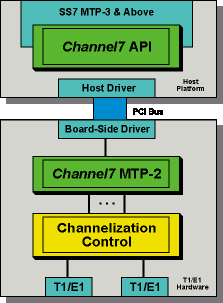

Designed around an intelligent T1/E1 controller, Channel7 provides extensive system scalability. The distributed processing architecture of the Channel7 hardware allows the addition of SS7 links into existing equipment without compromising overall host system performance.

A Hardware and Software Bundle

Channel7 is delivered as a bundled hardware/software solution. With the combination of Performance Technologies' PowerQUICC® based T1/E1 hardware as the MTP-1 physical interface and specifically developed onboard MTP-2 link layer software, developers can realize higher link density and sustained operation of up to 850 messages per second over all active channels.

Interoperability With Your Upper Level Stacks

Upper level stacks, such as TCAP, ISUP and TUP from any SS7 software vendor can be integrated with the Channel7 platform through a well defined Application Programming Interface (API). The API allows for the easy integration of any MTP-3 to the Channel7 MTP-2 link layer.

Target Applications

Target telecom equipment applications for Channel7 include Service Control Points (SCP), Service Switching Points (SSP), Signal Transfer Points (STP), Intelligent Peripherals (IP), Home Location Registers (HLR) and Visitor Location Registers (VLR). Additional applications include SS7 signaling gateways, multimedia gateway controllers, and any SS7-based broadband or narrowband network element. SS7 stack vendors can also use Channel7 to satisfy application needs.
