The SC13 is a single-board computer for
embedded applications based on the Kahlua II PowerPC, offering different
types of mezzanine slots for industrial and computer I/O extensions. |
|
Technical Data |
|
|
CPU |
PowerPC |
|
Memory |
Level 1 Cache integrated in
MPC8245 SO-DIMM slot for up to 512MB SDRAM 100MHz memory bus operation Flash 2MB Serial EEPROM 2KB for factory
settings CompactFlash (TM) card interface
for Flash ATA (true IDE) via on-board IDE |
|
Interfaces |
Two 10/100Mbits/s Ethernet
channels One UART RS232 serial interface
(COM1) One UART (COM2) Two MPC8245 UARTs IDE port for hard disk drives Keyboard/mouse USB port |
|
Local PCI Bus |
PCI Spec. 2.2 compliant 32-bit data bus, 33MHz, 3.3V |
|
Mezzanine Extensions |
SC13a: three PC-MIPs Type I/II on
local PCI bus SC13b: three M-Modules SC13c: two PMCs |
|
Miscellaneous |
Serial real-time clock with
integrated 56-byte NVRAM Serial hardware watchdog in
supervisory circuit Power supply via onboard 4-pin
power connector Temperature sensor Hex switch for user settings User LEDs (external) |
|
Electrical Specifications |
Supply voltage/power consumption: MTBF: 63,000h @ 50°C |
|
Mechanical Specifications |
Dimensions: standard double
Eurocard, 233.3mm x 160mm Weight (without mezzanines and
accessories): |
|
Environmental Specifications |
Temperature range (operation): Temperature range (storage):
-40..+85°C Relative humidity (operation):
max. 95% non-condensing Relative humidity (storage): max.
95% non-condensing Altitude: -300m to + 3,000m Shock: 15g/11ms Bump: 10g/16ms Vibration (sinusoidal):
2g/10..150Hz |
|
Safety |
PCB manufactured with a
flammability rating of 94V-0 by UL recognized manufacturers |
|
EMC |
Tested according to EN 55022
(radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst) with regard
to CE conformity |
|
Software Support |
VxWorks OS-9 Linux MENMON |

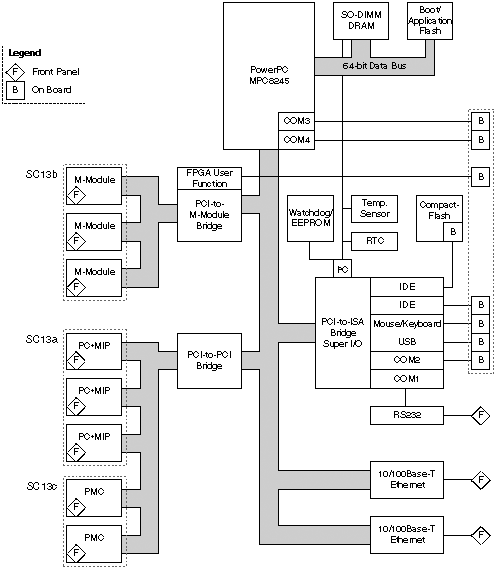

Diagram |
|
Related Products & Downloads |
|
|
Standard Hardware |
|
|
|
SC13a, busless single-board computer (6U), CPU MPC8245-300MHz, 2MB Flash, 3 PC-MIP slots, 0..+60°C |
|
|
SC13a, busless single-board computer (6U), CPU MPC8245-300MHz, 2MB Flash, 3 PC-MIP slots, -40..+85°C |
|
|
SC13b, busless single-board computer (6U), CPU MPC8245-300MHz, 2MB Flash, 3 M-Module slots, 0..+60°C |
|
|
SC13b, busless single-board computer (6U), CPU MPC8245-300MHz, 2MB Flash, 3 M-Module slots, -40..+85°C |
|
|
SC13c, busless single-board computer (6U), CPU MPC8245-300MHz, 2MB Flash, 2 PMC slots, 0..+60°C |
|
|
SC13c, busless single-board computer (6U), CPU MPC8245-300MHz, 2MB Flash, 2 PMC slots, -40..+85°C |
|
Accessories |
|
|
|
Hard disk 2.5", 9.5mm adapter for A12, D3, SC13 |
|
|
RS232 interface cable 9-pin D-Sub plug to 8-pin RJ45 plug, 2m |
|
|
25 mounting screw sets to fix M-Modules on carrier boards |
|
You can download the data sheet for hard disk 0710-0012 from MEN's website. |
|
|
|
IDE hard disk 2.5", 9.5mm, 20GB; for mounting on-board (harddisk mounting kit may be additionally required) |
|
|
Industrial IDE hard disk 2,5", 40GB, 24 hours/7 days, 0..+60°C; for on-board mounting (hard disk mounting kit may be required additionally) |
|
|
CompactFlash card, 512MB, Type I, 0..+60°C |
|
|
CompactFlash card, 512MB, Type I, -40..+85°C |
|
|
CompactFlash card, 64MB, Type I, 0..+60°C |
|
|
CompactFlash card, 128MB, Type I, 0..+60°C |
|
|
CompactFlash card, 256MB, Type I, 0..+60°C |
|
|
Compact Flash card, 64MB, -40..+85°C |
|
|
Compact Flash card, 128MB, -40..+85°C |
|
|
CompactFlash card, 256MB, Type I, -40..+85°C |
|
|
64MB DRAM 0..+60°C for 08SC13x00 |
|
|
128MB DRAM 0..+60°C for 08SC13x00 |
|
|
256MB DRAM 0..+60°C for 08SC13x00 |
|
|
512MB DRAM 0..+60°C for 08SC13x00 |
|
|
512MB DRAM -40..+85°C for 08SC13x01 |
|
|
I/O extension 19" 6U 4HP incl. 1 USB connector, 1 keyboard connector, 1 mouse connector; prepared for 3 SA adapters, prepared for HDD 2.5", reset, abort, 0..+60°C |
|
|
Serial interface adapter, RS232, not optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS422/485, half duplex, optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS422/485, full duplex, optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS422/485, full duplex, optically isolated, temperature range: -40..+85°C |
|
|
Serial interface adapter, RS232, optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS232, optically isolated, -40..+85°C |
|
|
Serial interface adapter, TTY, optically isolated, 0..+60°C |
|
For more functions realized with SA adapters, see the listing on MEN's website. You can also view our SA adapter compare chart for a quick overview of different functions. Please contact sales to make sure that these SA adapters can be used in the board configuration you are looking for. |
|
|
Software |
|
|
|
ELinOS V.3.0 - Embedded Linux incl. RTAI real-time extension for PowerPC, English version. The Sysgo Development Kit includes the board support packages (BSPs) for MEN cards F1N, B11, A12, A15, D3, SC13, F6, EM04/N and PP01. The package includes 1 year ELinOS development support and all ELinOS updates and upgrades during this period for free. It additionally includes the BSP support for MEN hardware by MEN. --- N.B.: For correct handling of the ELinOS software support it is mandatory to sign and return the enclosed support agreement directly to Sysgo! The Sysgo support agreement is automatically prolonged for another year if not cancelled 3 months prior to expiration. |
|
|
ELinOS V.3.0 - Embedded Linux incl. RTAI real-time extension for PowerPC, German version. The Sysgo Development Kit includes the board support packages (BSPs) for MEN cards F1N, B11, A12, D3, SC13, F6, EM04/N and PP01. The package includes 1 year ELinOS development support and all ELinOS updates and upgrades during this period for free. It additionally includes the BSP support for MEN hardware by MEN. --- N.B.: For correct handling of the ELinOS software support it is mandatory to sign andreturn the enclosed support agreement directly to Sysgo! The Sysgo support agreement is automatically prolonged for another year if not cancelled 3 months prior to expiration. |
|
|
OS-9(000) V.2.2/3.x: BSP for F1N, B11, A12, D3, SC13, Kahlua Box (object code, MEN) |
|
|
OS-9(000) V4.2: BSP for F1N, B11, A12, A15, D3, SC13, Kahlua Box (object code, MEN) |
|
|
QNX® 6 BSP for F1N, B11, A12, A15, D3, SC13, Kahlua Box (object code, MEN) |
|
|
VxWorks® V.5.4..5.5 / Tornado 2.0..2.2 BSP for F1N, B11, A12, D3, SC13, Kahlua Box, A15 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MENMON (Firmware) for A12, D3, SC13 (object code) |
|
