Product Description
Product Description |
|
|
The P17 is based on the PC-MIP ANSI mezzanine
standard. It can be used as an I/O extension in any type of bus system, i.e.
CPCI, PXI, VME or on any type of stand-alone SBC. Appropriate PC-MIP carrier
cards in 3U, 6U and other formats are available from MEN or other
manufacturers. Comparable with the larger foot print PMC mezzanine cards,
PC-MIP boards also support PCI bus. |
|
Technical Data |
|
|
Graphics Control |
SM731 controller Video Memory DVI via PanelLink transmitter RAMDAC Video BIOS ROM |
|
Interfaces |
DVI-I via front-panel connector S-Video Output/Input and Composite
Video Output via front-panel connector LVDS1 and LVDS2 via onboard
connectors |
|
PCI Characteristics |
32-bit PCI, complying with PCI
Local Bus Specification, Rev. 2.2 33MHz Target |
|
Peripheral Connection |
Via front panel on one DVI-I
connector and one standard 9-pin D-Sub receptacle connector Via optional onboard 50-pin plug
connector Via J3 rear I/O |
|
Electrical Specifications |
Isolation voltage: tbd. Supply voltage/power consumption: MTBF: 240,000h @ 50°C |
|
Mechanical Specifications |
Dimensions: double PC-MIP Type II
conforming to PC-MIP Standard Weight: 70g |
|
Environmental Specifications |
Temperature range (operation): Temperature range (storage):
-40..+85°C Relative humidity (operation):
max. 95% non-condensing Relative humidity (storage): max.
95% non-condensing Altitude: -300m to + 3,000m Shock: 15g/11ms Bump: 10g/16ms Vibration (sinusoidal):
2g/10..150Hz |
|
Safety |
PCB manufactured with a
flammability rating of 94V-0 by UL recognized manufacturers |
|
EMC |
Tested according to EN 55022
(radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst) with regard
to CE conformity |
|
Software Support |
Driver support for Windows
2000/XP, OS-9 (incl. C library and shared library module for XiBase9) |

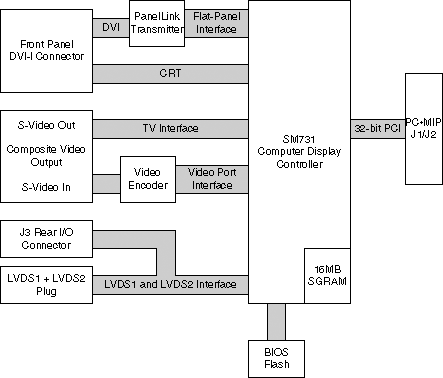

Diagram |
|
Related Products & Downloads |
|
|
Standard Hardware |
|
|
|
P17, Double PC-MIP Display Controller with SMI731, 16MB integrated SGRAM, 4 Mbit Flash BIOS, LCD (up to UXGA resolution) and CRT via DVI, LVDS, S-Video In/Out and Composite Video Output; operating temperature 0..+60°C |
|
|
P17, Double PC-MIP Display Controller with SMI731, 16MB integrated SGRAM, 4 Mbit Flash BIOS, LCD (up to UXGA resolution) and CRT via DVI, LVDS, S-Video In/Out and Composite Video Output, operating temperature -40..+85°C |
|
|
P17, Double PC-MIP Display Controller with SMI731, 16MB integrated SGRAM, 4 Mbit Flash BIOS, LCD and CRT via DVI, operation temperature 0..+60°C |
|
Please refer to our PC-MIP and PMC compare chart for a
selection of mezzanine functions. |
|
|
Accessories |
|
|
|
DVI-to-VGA cable, DVI plug to 15-pin HD-Sub plug, 2m, -40..+85°C |
|
|
Splitter cable D-Sub S-Video In/Out, Composite Video Output to 2 mini DIN 4-pin/RCA jacks |
|
|
DVI-I to DVI-D and VGA Y-adapter cable (for example for D4, F7/N, F8, F9, P17) |
|
Software |
|
|
|
|
|
|
OS-9: C library for P17 and P517 for simple portations of various graphics packages based on a frame buffer interface |
|
|
OS-9: Shared library module XiGfx.dll. for P17 and P517 for XiBase9 |
|
|
Windows® 2000: Graphics driver for P17 and P517 (SMI, object code) |
|
|
Windows® XP2000: Graphics driver for P17 and P517 (SMI, object code) |
|
Further driver software for Windows® 98, Windows® 2000,
Windows® XP (SMI) and XiBase9 (MEN) on request. |
|
|
Documentation |
|
|
|
PC-MIP draft specification Rev. 0.92b |
|
|
P17 user manual |
|
15P017-EU |
EU Manufacturer declaration for this product |
;)
XiBase9,
a graphical user interface for Linux and OS-9 from XiSys, is running on the
MEN graphics controller PC-MIP and PMC modules P1, P17 and P517 in
combination with the PowerPC-based Single-Board Computers A11, A12, D3, F1N,
B11 and SC13 (further SBCs on request). For more information, purchase and
support please apply to
