P16 - PC-MIP Dual 100Base-T Ethernet

PDF¤U¸ü

Product Description

The P16 is based on the PC-MIP ANSI mezzanine standard. It can be used as an I/O extension in any type of bus system, i.e. CPCI, PXI, VME or on any type of stand-alone SBC. Appropriate PC-MIP carrier cards in 3U, 6U and other formats are available from MEN or other manufacturers. Comparable with the larger foot print PMC mezzanine cards, PC-MIP boards also support PCI bus.
The P16 provides dual Ethernet functionality with a 1000V isolation for telecom applications (e. g. routers) as well as for industrial applications (e. g. second Ethernet as fieldbus).
The P16 features two Intel® 82559 Ethernet controllers, supporting 10/100Base-T via two RJ45 connectors at the front panel. The PC-MIP offers full-duplex support. The MAC address is stored in an onboard serial EEPROM.
　

P16 - PC-MIP Dual 100Base-T Ethernet

　

Technical Data

Ethernet Interface

Two 10/100Base-T interfaces
　

Two 82559ER controllers
　

Full duplex support
　

Media Access Control (MAC) address stored in onboard serial EEPROM
　

PCI Characteristics

32-bit PCI, complying with PCI Local Bus Specification, Rev. 2.1
　

Target and initiator
　

Peripheral Connection

Via front panel on two standard 8-pin RJ45 receptacle connectors
　

Electrical Specifications

Isolation voltage: 1kV RMS (0..1000m above sea level)
　

Supply voltage/power consumption:
• +3.3V (3.0V..3.6V), 300mA typ., 450mA max.
　

MTBF: 490,000h @ 50°C
　

Mechanical Specifications

Dimensions: PC-MIP Type II conforming to PC-MIP Standard
　

Weight: 30g
　

Environmental Specifications

Temperature range (operation):
• 0..+60°C
• Industrial temperature range on request
• Airflow: min. 10m³/h
　

Temperature range (storage): -40..+85°C
　

Relative humidity (operation): max. 95% non-condensing
　

Relative humidity (storage): max. 95% non-condensing
　

Altitude: -300m to + 3,000m
　

Shock: 15g/0.33ms, 6g/6ms
　

Vibration: 1g/5..2,000Hz
　

Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
　

EMC

Tested according to EN 55022 / 1999-05 (radio disturbance) and EN 55024 / 1999-05 (immunity) with regard to CE conformity
　

Software Support

Drivers from Intel® for many operating systems
　

Drivers already implemented in VxWorks, Linux, QNX, OS-9
　

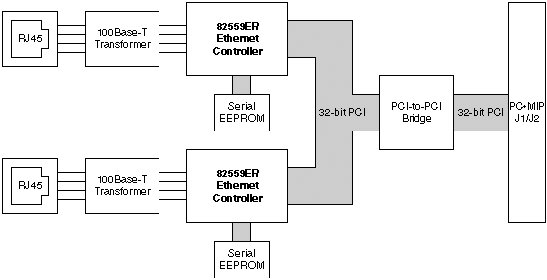

Diagram

Related Products & Downloads

Standard Hardware

15P016-00

P16, PC-MIP Type II (with front I/O), dual fast 100Base-T Ethernet, 0..+60°C

15P016-01

P16, PC-MIP Type II (with front I/O), dual fast 100Base-T Ethernet, -40..+85°C

15P016-02

P16, PC-MIP Type II (with front I/O), dual fast 100Base-T Ethernet, 0..+60°C, 2 LEDs at front

Please refer to our PC-MIP and PMC compare chart for a selection of mezzanine functions.
　

Software

For a comprehensive driver package supporting the 82559ER controller, please refer to www.intel.com.
　

Documentation

20P000-00

PC-MIP draft specification Rev. 0.92b

20P016-00

P16 user manual

15P016-EU

EU Manufacturer declaration for this product
