P15 - PC-MIP Non-volatile SRAM

PDF¤U¸ü

Product Description

The P15 is based on the PC-MIP ANSI mezzanine standard. It can be used as an I/O extension in any type of bus system, i.e. CPCI, PXI, VME or on any type of stand-alone SBC. Appropriate PC-MIP carrier cards in 3U, 6U and other formats are available from MEN or other manufacturers. Comparable with the larger foot print PMC mezzanine cards, PC-MIP boards also support PCI bus.
The P15 can be used to store non-volatile data. The memory is implemented in FRAM technology (Ferroelectric Random Access Memory). FRAMs are proprietary high-performance semiconductors that retain information even when power is lost. For this technology no batteries are required - and maintenance problems are solved. Access times are the same as for standard static SRAM, so there is no delay at write access as for EEPROM or Flash. The number of write cycles is also nearly unlimited (10 billion read/writes).
　

P15 - PC-MIP Non-volatile SRAM

　

Technical Data

Memory

256KB or 512KB FRAM
　

Four memory banks with 512KB
　

Two memory banks with 256KB
　

Access time: 70ns
　

Cycle time: 130ns
　

PCI Characteristics

32-bit/33-MHz PCI, complying with PCI Local Bus Specification, Rev. 2.1
　

Target
　

Peripheral Connection

No peripheral connections
　

Electrical Specifications

Supply voltage/power consumption:
• +5V (4.85V..5.25V), 22.5mA typ.
• +3.3V (3.0V..3.6V), 86.3mA typ.
　

MTBF: tbd. @ 50°C
　

Mechanical Specifications

Dimensions: PC-MIP Type I conforming to PC-MIP Standard, without J3
　

Weight: 34g
　

Environmental Specifications

Temperature range (operation):
• -40..+85°C
• Airflow: min. 10m³/h
　

Temperature range (storage): -40..+85°C
　

Relative humidity (operation): max. 95% non-condensing
　

Relative humidity (storage): max. 95% non-condensing
　

Altitude: -300m to + 3,000m
　

Shock: 15g/0.33ms, 6g/6ms
　

Vibration: 1g/5..2,000Hz
　

Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
　

EMC

Tested according to EN 55022 / 1999-05 (radio disturbance) and EN 55024 / 1999-05 (immunity) with regard to CE conformity
　

Software Support

Driver support for Linux, VxWorks, OS-9
　

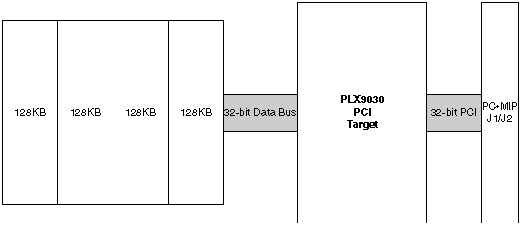

Diagram

Related Products & Downloads

Standard Hardware

15P015-00

P15, PC-MIP Type I (no front I/O), no rear I/O, non-volatile FRAM 512KB, -40..+85°C

15P015-01

P15, PC-MIP Type I (no front I/O), no rear I/O, non-volatile FRAM 256KB, -40..+85°C

Please refer to our PC-MIP and PMC compare chart for a selection of mezzanine functions.
　

Documentation

20P000-00

PC-MIP draft specification Rev. 0.92b

20P015-00

P15 user manual
