P14 - PC-MIP IEEE 1394 OHCI FireWire Controller

PDF¤U¸ü

Product Description

The P14 is based on the PC-MIP ANSI mezzanine standard. It can be used as an I/O extension in any type of bus system, i.e. CPCI, PXI, VME or on any type of stand-alone SBC. Appropriate PC-MIP carrier cards in 3U, 6U and other formats are available from MEN or other manufacturers. Comparable with the larger foot print PMC mezzanine cards, PC-MIP boards also support PCI bus.
The P14 PC-MIP is a 400-Mbps controller for the IEEE 1394 High Performance Serial Bus, also known as FireWire (TM Apple) and i.LINK (TM Sony). The IEEE 1394 defines a high-speed next-generation network topology and protocol. Guaranteed bandwidth is provided for mission critical applications and make the P14 a fast, reliable and universal interconnection between computers and I/O devices.
The P14 is provided with an integrated LLC/PHY chip, being fully compatible to OHCI-based software (implicit part of the MS Windows® operating systems as of Windows® 98SE and Windows® 2000). The data transfer rate is specified at 400Mbits/s (200/100Mbits/s). When sourced by the 6-pin 1394 connector with integrated power distribution, peripheral devices attached to the P14 need no separate power supply.
Live connect/disconnect, digital video and audio processing or high-speed data storage systems are typical applications for the P14.
　

P14 - PC-MIP IEEE 1394 OHCI FireWire Controller

　

Technical Data

Controller

TI TSB43AA22 Integrated 1394a-2000 OHCI PHY/Link Layer Controller
　

Data Transfer Rates

100, 200 and 400Mbits/s
　

PCI Characteristics

32-bit PCI, complying with PCI Local Bus Specification, Rev. 2.1
　

Target and initiator
　

Peripheral Connections

Via front panel on a shielded 6-pin Molex receptacle connector
　

Miscellaneous

Cable Active LED for on-board diagnosis
　

Electrical Specifications

Supply voltage/power consumption:
• +5V (4.85V..5.25V), 100mA max.
• +3.3V (3.0V..3.6V), 300mA max.
• +12V (11.4V..12.6V), 100mA max. (without 1394 cable power charge)
　

MTBF: tbd. @ 50°C
　

Mechanical Specifications

Dimensions: PC-MIP Type II conforming to PC-MIP specification
　

Weight: 23g
　

Environmental Specifications

Temperature range (operation):
• 0..+60°C
• Industrial temperature range on request
• Airflow: min. 10m³/h
　

Temperature range (storage): -40..+85°C
　

Relative humidity (operation): max. 95% non-condensing
　

Relative humidity (storage): max. 95% non-condensing
　

Altitude: -300m to + 3,000m
　

Shock: 15g/0.33ms, 6g/6ms
　

Vibration: 1g/5..2,000Hz
　

Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
　

EMC

Tested according to EN 55022 / 1999-05 (radio disturbance) and EN 55024 / 1999-05 (immunity) with regard to CE conformity
　

Software Support

Windows 98 and Windows 2000, no drivers necessary
　

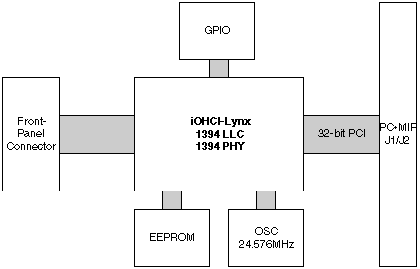

Diagram

Related Products & Downloads

Standard Hardware

15P014-00

P14, PC-MIP Type II (front I/O), IEEE1394 FireWire, OHCI PHY/Link Layer Controller TI TSB43AA22, 400Mbits/s

Please refer to our PC-MIP and PMC compare chart for a selection of mezzanine functions.
　

Documentation

20P000-00

PC-MIP draft specification Rev. 0.92b

20P014-00

P14 user manual
