M79 - Profibus DP Slave Interface

Product Description

The M79 is based on the M-Module ANSI mezzanine standard. It can be used as an I/O extension in any type of bus system, i.e. CPCI, PXI, VME or on any type of stand-alone SBC. Appropriate M-Module carrier cards in 3U, 6U and other formats are available from MEN or other manufacturers.
The M79 M-Module is a Profibus DP (Distributed Peripherals) slave interface based on the Infineon C165 CPU. It is thus an ideal interface solution for intelligent remote I/O applications via a very popular fieldbus standard.
The C165 CPU handles communication with the host CPU via the onboard shared DRAM. The advantage of this Profibus implementation is that the complete Profibus protocol stack runs locally on the M-Module with very reduced interaction of the host CPU.
The RS485 Profibus interface (9-pin D-Sub) allows selectable transmission rates from 9.6 kbits/s up to 12Mbits/s. The optically isolated interface is supplied by an onboard DC/DC converter. The output is short-circuit protected.
The M79 comes with 512KB of local Flash, 1MB of local SRAM and 16KB dual-ported RAM.
Profibus slave functionality comprises initialization and termination of slaves, additional status information on output and input data as well as security services such as DP applications checked by a user watchdog or a protocol stack monitored by the application.
The Profibus firmware consists of the true Softing protocol stack. The corresponding driver software comes from MEN and complies with standard Softing tools. It supports configuration of the M79 for each application in a very convenient way. The driver is based on MDIS (MEN Driver Interface System) which makes the M79 ready for use under Windows®, Linux and RTOS environments.
　

Technical Data

C165 CPU	16-bit data bus, 20-bit address bus 　 Complete Profibus DP software on one M-Module 　 Local interrupt controller 　 Hardware watchdog
Slave: SPC 3 Profibus Controller	Up to 12Mbaud data rate 　 8-bit interface (local) 　 Complete DP slave protocol
Master: ASPC 2 Profibus Controller	Optional, for M79 as Profibus Master 　 Up to 12Mbaud data rate 　 16-bit DMA interface (local) 　 Complete bus access protocol 　 Up to 127 active or passive stations
Miscellaneous	1MB shared memory for communication and program 　 Isolated RS485 Profibus interface
Peripheral Connections	Via front panel on a shielded 9-pin D-Sub receptacle connector
M-Module Characteristics	A08, D16, INTA, IDENT
Electrical Specifications	Electrical isolation: 500V DC • 500V DC between isolated side and digital side • Voltage between the connector shield and isolated ground is limited to 180V using a varistor; AC coupling between connector shield and isolated ground through 47nF capacitor 　 Supply voltage/power consumption: • +5V (4.85V..5.25V), 287mA 　 MTBF: 430,000h @ 50°C
Mechanical Specifications	Dimensions: conforming to M-Module Standard 　 Weight: 53g
Environmental Specifications	Temperature range (operation): • 0..+60°C or -40..+85°C • Airflow: min. 10m³/h 　 Temperature range (storage): -40..+85°C 　 Relative humidity (operation): max. 95% non-condensing 　 Relative humidity (storage): max. 95% non-condensing 　 Altitude: -300m to + 3,000m 　 Shock: 15g/11ms 　 Bump: 10g/16ms 　 Vibration (sinusoidal): 2g/10..150Hz
Safety	PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC	Tested according to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst) with regard to CE conformity
Software Support	Softing protocol portation (ISO/OSI protocol layer 2/DP) 　 MEN Driver Interface System (MDIS for Windows, Linux, VxWorks, QNX, RTX, OS-9)

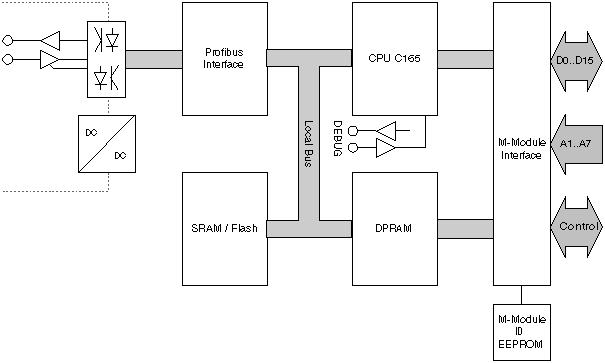

Diagram

Related Products & Downloads

Standard Hardware
04M079-00	M79, M-Module, Profibus slave interface, temperature range: 0..+60°C
04M079-01	M79, M-Module, Profibus slave interface, temperature range: -40..+85°C
Please refer to our M-Module compare chart for a selection of further fieldbus interfaces.
