B6 - 3U VMEbus 68k Communication Controller

Product Description

The B6 is a cost-optimized single-board CPU board for embedded communication-intensive applications.
The board features an MC68360, which supports all kins of serial protocols including Ethernet, Bitbus, UART etc. This 68020-compatible 32-bit CISC processor is well equipped with 4MB SRAM, 4MB DRAM and 4MB Flash.
Independent of the CISC processor a RISC processor is available for communication tasks. It can serve up to six serial interfaces with 12 DMA channels. The line drivers of the serial interfaces are not fixed by the board. Two serial interfaces are connected directly on the CPU, another four via ribbon cable. They can be adapted to RS232/485 as well as Bitbus and Ethernet.
An M-Module slot is provided for local extensions. It needs a second slot on the VMEbus. A mounting kit is available.
Full multimaster-capability as well as automatic slot-1 functionality make the B6 an interesting choice for many VMEbus applications.
The B6 was designed to be extremely cost-effective. It is also available for harsh environmental requirements.
　

Technical Data

CPU	MC68360/33MHz 　 32 bits
VMEbus	3U VMEbus form factor 　 VMEbus master interface • Interrupter/interrupt handler • A16, A24, D16 • VMEbus slot-1 functionality
Memory	512KB boot Flash • 16-bit data bus 　 Up to 4MB SRAM • Battery-backed via VMEbus • 32-bit data bus 　 Up to 4MB DRAM on board • 32-bit data bus • Burst access 　 Up to 4MB Flash • 32-bit data bus • Onboard programming • Burst access
Serial Interface Adapter Interfaces	2 SMC UARTs • For two external serial SA adapters • Connection via 10-pin ribbon-cable connectors 　 2 SCC intelligent serial interfaces • For two serial SA adapters • Directly plugged on the board via 10-pin connector • Additional Bitbus baud rate 　 2 SCC intelligent serial interfaces • For two external serial SA adapters • Connection via 10-pin ribbon-cable connectors 　 Physical interface using adapter • RS232, RS422, RS485, TTY or Bitbus • Optically isolated or not
M-Module Extension	1 MA-Module slot (requires additional VMEbus slot and front panel) 　 Characteristics: A08, A20, D16, INTA
Miscellaneous	Battery-backed real-time clock 　 Programmable watchdog 　 Serial EEPROM (4Kbit) for setup 　 Two hex switches 　 Four programmable LEDs 　 Reset button and abort button 　 Single 5V supply (12V for M-Modules if installed)
Electrical Specifications	Supply voltage/power consumption: +5V (4.85V..5.25V), 600mA typ. 　 MTBF: 45,000h @ 50°C
Mechanical Specifications	Dimensions: standard single Eurocard, 100mm x 160mm 　 Weight: 150g
Environmental Specifications	Temperature range (operation): • 0..+60°C • Industrial temperature range on request • Airflow: min. 10m³/h 　 Temperature range (storage): -40..+85°C 　 Relative humidity range (operation): max. 95% non-condensing 　 Relative humidity range (storage): max. 95% non-condensing 　 Altitude: -300m to + 3,000m 　 Shock: 15g/0.33ms, 6g/6ms 　 Vibration: • 1..10Hz @ a=25/f • 10..100Hz @ a=250/f
Safety	PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC	Tested according to EN 55022 / 1999-05 (radio disturbance) and EN 55024 / 1999-05 (immunity) with regard to CE conformity
Software Support	MENMON 　 OS-9

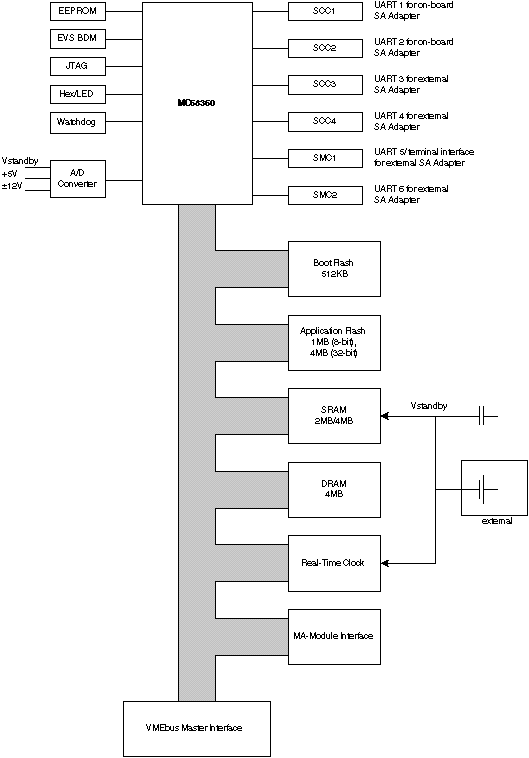

Diagram

Related Products & Downloads

Standard Hardware
01B006-00	B6, 1-slot VME 3U, single-board computer, CPU 68360/33MHz, 4MB DRAM, 4MB SRAM, 4MB Flash, 0.5MB boot Flash, 2 SA adapter slots, without SA adapters
Please refer to our 3U VMEbus compare chart for a selection of further single-board computers with different processors and on-board functionality.
Systems & Card Cages
Disk drives for basic systems are delivered as requested. Different rack sizes, power supplies and backplanes on request.
0700-0009	CE-conformal housing for VMEbus 3U: closed 19" rack, 4U, 9 slots, J1 backplane, power supply 230V, fan
Accessories
05B005-00	Accessory kit for B5: 1-slot front panel, M-Module mounting kit, cover plates for M-Module and SA adapter
05M000-15	Front-panel cover for M-Module cut-outs at front panels, snap-in, 10 pcs
08SA01-00	Serial interface adapter, RS232, not optically isolated, 0..+60°C
08SA02-00	Serial interface adapter, RS422/485, half duplex, optically isolated, 0..+60°C
08SA02-01	Serial interface adapter, RS422/485, full duplex, optically isolated, 0..+60°C
08SA02-07	Serial interface adapter, RS422/485, full duplex, optically isolated, temperature range: -40..+85°C
08SA03-00	Serial interface adapter, RS232, optically isolated, 0..+60°C
08SA03-01	Serial interface adapter, RS232, optically isolated, -40..+85°C
08SA04-00	Serial interface adapter, TTY, optically isolated, 0..+60°C
08SA06-01	Serial interface adapter, RS485/Bitbus interface, optically isolated, 0..+60°C
08SA07-00	Serial interface adapter, Ethernet 10Base-T, 9-pin D-Sub connector, electrically isolated, 0..+60°C
08SA10-00	Serial interface adapter, fiber optic Ethernet 10Base-FL, serial UART full duplex, 0..+60°C
For more functions realized with SA adapters, see the listing on MEN's website. You can also view our SA adapter compare chart for a quick overview of different functions. Please contact sales to make sure that these SA adapters can be used in the board configuration you are looking for.
Software
10ABMX-07	OS-9 V.3.0: OS-9/68k + NET license
10B006-01	OS-9 V.3.0.3: BSP for B6 incl. Bit Bus driver (object code, floppy disks, MEN)
For OS-9 BSP and driver support provided by MEN please refer to the ordering numbers below.
Documentation
20B006-00	B6 user manual
01B006-EU	EU Manufacturer declaration for this product
