Product Description
Product Description |
|
|
The B12 is a VMEbus single Eurocard industrial
computer designed to operate under harsh environmental conditions, e.g. in
trains. |
|
Technical Data |
|
|
CPU |
PowerPC |
|
Memory |
SDRAM 32MB Flash up to 32MB Non-volatile FRAM 32KB Serial EEPROM 4kbit CompactFlash (TM) interface (true
IDE) PCMCIA/PC-Card interface |
|
Interfaces |
Two serial RS232 interfaces
COM1/COM2 Ethernet IDE Three SJA1000 CAN controllers One serial RS422/RS485 interface
COM3 |
|
M-Module Extension |
One M-Module mezzanine extension
slot Compliant with M-Module Standard Characteristics: A08, D16, INTA |
|
VMEbus |
Master D08(EO):D16:A24:A16:RMW;
transfer rate max. 7MB/s Slave D08(EO):D16:A24:BLT Interrupter D08(O):I(7-1):ROAK Interrupt handler D08(O):IH(7-1) Slot-1 autodetection Level 3 arbiter, bus timer,
arbitration timer VME requester |
|
Miscellaneous |
Real-time clock Watchdog Four front-panel LEDs Reset button at front panel Temperature sensor for in-system
diagnosis |
|
Electrical Specifications |
Supply voltage/power consumption: MTBF: tbd. @ 50°C |
|
Mechanical Specifications |
Dimensions: standard single
Eurocard, 100mm x 160mm Weight: 160g |
|
Environmental Specifications |
Temperature range (operation): Temperature range (storage):
-40..+85°C Relative humidity range
(operation): max. 95% non-condensing Relative humidity range (storage):
max. 95% non-condensing Altitude: -300m to + 3,000m Shock: 15g/0.33ms, 6g/6ms Vibration: 1g/5..2,000Hz |
|
Safety |
PCB manufactured with a
flammability rating of 94V-0 by UL recognized manufacturers |
|
EMC |
Tested according to EN 55022 /
1999-05 (radio disturbance) and EN 55024 / 1999-05 (immunity) with regard to
CE conformity |
|
Software Support |
MENMON VxWorks OS-9 |

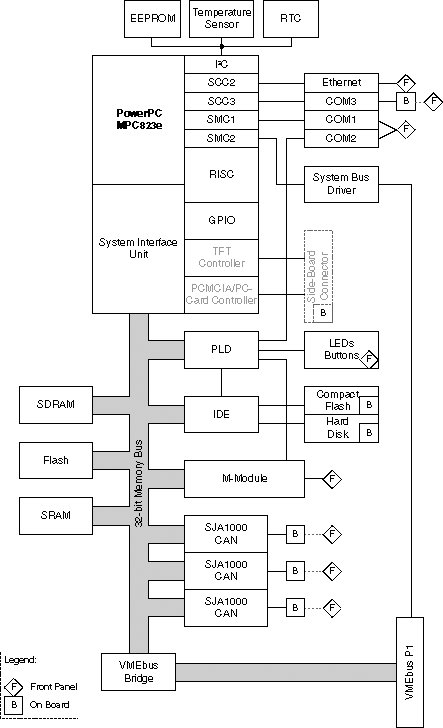

Diagram |
|
Related Products & Downloads |
|
|
Standard Hardware |
|
|
|
B12, VMEbus 3U, MPC823/66MHz, 32MB SDRAM, 8MB Flash, 32KB SRAM, 4KB EEPROM, CompactFlash slot Type I, 2 RS232, Ethernet, 4 LEDs, 1 push button, M-Module slot, 1-slot front panel EMC, temperature range: 0..+60°C |
|
|
B12, VMEbus 3U, MPC823/66MHz, 32MB SDRAM, 8MB Flash, 32KB SRAM, 4KB EEPROM, CompactFlash slot Type I, 2 RS232, Ethernet, 4 LEDs, 1 push button, M-Module slot, 1-slot front panel EMC, temperature range: -40..+85°C, E2 suitable components |
|
Please refer to our 3U VMEbus compare chart for a selection
of further single-board computers with different processors and on-board
functionality. |
|
|
Systems & Card Cages |
|
|
Disk drives for basic systems are delivered as requested.
Different rack sizes, power supplies and backplanes on request. |
|
|
|
CE-conformal housing for VMEbus 3U: MENCOMP6-BGT: closed 19" rack, 4U, 9 slots, J1 backplane, power supply 230V, fan, incl. power cable no. 6080-0020 |
|
|
CE-conformal housing for VMEbus 3U: closed 19" rack, 4U, 9 slots, J1 backplane, power supply 230V, fan |
|
|
CompactFlash card, 512MB, Type I, 0..+60°C |
|
|
CompactFlash card, 512MB, Type I, -40..+85°C |
|
|
CompactFlash card, 64MB, Type I, 0..+60°C |
|
|
CompactFlash card, 128MB, Type I, 0..+60°C |
|
|
CompactFlash card, 256MB, Type I, 0..+60°C |
|
|
CompactFlash card, 64MB, -40..+85°C |
|
|
CompactFlash card, 128MB, -40..+85°C |
|
|
CompactFlash card, 256MB, Type I, -40..+85°C |
|
|
Serial interface adapter, RS232, not optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS422/485, half duplex, optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS422/485, full duplex, optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS422/485, full duplex, optically isolated, temperature range: -40..+85°C |
|
|
Serial interface adapter, RS232, optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS232, optically isolated, -40..+85°C |
|
|
Serial interface adapter, TTY, optically isolated, 0..+60°C |
|
For more functions realized with SA adapters, see the listing on MEN's website. You can also view our SA adapter compare chart for a quick overview of different functions. Please contact sales to make sure that these SA adapters can
be used in the board configuration you are looking for. |
|
|
Software |
|
|
|
OS-9(000) 3.x: BSP for B12 (object code, MEN) |
|
|
VxWorks® V.5.4(.2) / Tornado 2.(0.2) BSP for B12 |
|
|
|
|
|
|
|
|
|
|
|
MENMON (Firmware) for B12 (object code) |
|
You can download the data sheet for the MENMON firmware for
PowerPC platforms from MEN's website. |
|
|
Documentation |
|
|
|
B12 user manual |
|
01B012-EU |
EU Manufacturer declaration for this product |
;)
VxWorks®
software for this MEN board is available from WindRiver Systems. This does
not imply that the complete board functions have been tested in this
environment, nor that specific MEN BSP or driver packages are available. If
you don't find ordering numbers for additional VxWorks® BSP or driver
packages provided or recommended by MEN, please contact sales.
For
OS-9 BSP and driver support provided by MEN please refer to the ordering
numbers below.
MEN
has vast experience with CANopen-based implementations on standard and
custom boards and systems. The CANopen protocol stack on MEN solutions runs
under Windows®, Linux, VxWorks®, QNX®, OS-9 and other software environments.
You will find more information about CANopen under
