Product Description
Product Description |
|
|
Equipped with either the Intel® (LV) Pentium® M
or the Celeron® M processor, the 3U single-board computer is a versatile
4HP/3U (single size Eurocard) CompactPCI board, designed especially for
systems which require low power consumption. |
|
Technical Data |
|
|
CompactPCI Bus |
3U CompactPCI CPU board PICMG
Spec. 2.0 R3.0 compliant 32-bit CompactPCI system slot
functionality with 7 possible external loads PCI-to-PCI bridge Single-slot solution Rear I/O via J2/P2 V(I/O): +5V (+3.3V on request) |
|
CPU |
Intel® Celeron® M (ULV) or
Pentium® M 600MHz..1.8GHz |
|
Chipset |
Intel® i855 chip set consisting
of: |
|
Graphics |
Integrated VGA graphics controller |
|
Memory |
CPU L2 Cache Up to 1 GB DRAM |
|
Interfaces |
10/100/1000Mbits/s Gigabit
Ethernet controller USB 2.0 interfaces |
|
Mass Storage |
Fast IDE ports CompactFlash interface (Secondary
IDE) |
|
Electrical Specifications |
Supply voltage/power consumption: MTBF: tbd. @ 50°C |
|
Mechanical Specifications |
Dimensions: conforming to
CompactPCI specification for 3U boards Weight: tbd. |
|
Environmental Specifications |
Temperature range (operation): Temperature range (storage):
-40..+85°C Relative humidity (operation):
max. 95% non-condensing Relative humidity (storage): max.
95% non-condensing Altitude: -300m to + 3,000m Shock: 15g/11ms Bump: 10g/16ms Vibration (sinusoidal):
2g/10..150Hz |
|
Safety |
PCB manufactured with a
flammability rating of 94V-0 by UL recognized manufacturers |
|
EMC |
Tested according to EN 55022 /
1999-05 (radio disturbance) and EN 55024 / 1999-05 (immunity) with regard to
CE conformity |
|
Software Support |
Phoenix BIOS for industrial
applications Windows NT, Windows 2000/XP,
Embedded Windows Linux (on request) VxWorks (on request) QNX (on request) RTX (on request) |
Product Options |
|
|
Secondary IDE |
1.8" hard disk adapter instead of
CompactFlash |
|
Rear I/O on F9 |
Via rear I/O transition module F9R Primary IDE (onboard) Two USB 2.0 ports (back panel) PS/2 keyboard/mouse (back panel) COM1 (onboard, TTL level), for
connection of MEN SA adapters Gigabit Ethernet (back panel) VGA analog video (back panel) |
|
I/O on Expansion Board F9E |
COM1 (front) USB 2.0 (front) AC'97 audio (front) PS/2 keyboard/mouse (front) Secondary IDE usage for Floppy disk Local GPIO Rear I/O |
|
Miscellaneous |
F9 for 64-bit CompactPCI systems
only in combination with special rear I/O and extension board versions Extension possibility for F9 to 6U
height Second Ethernet port via special
I/O extension board More different legacy I/O
combinations via special I/O extension board One-piece 3U/8TE front panel for
F9 in combination with different I/O extension boards |

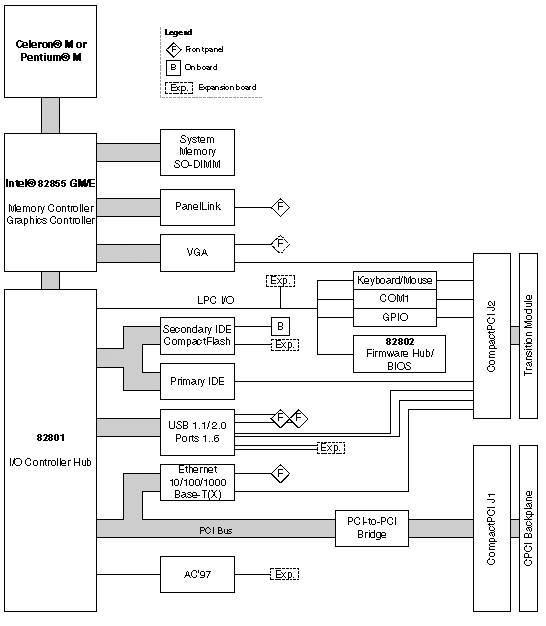

Diagram |
|
Related Products & Downloads |
|
|
Standard Hardware |
|
|
|
F9E, 1-slot 3U I/O extension for F9 with PS/2 keyboard/mouse, USB, 1 COM, audio, prepared for 2.5" hard disk (replaces CompactFlash facility), mounting on top or bottom of F9, 0..+60°C |
|
|
F9, 3U 4HP 32-bit CompactPCI system slot SBC with ULV Celeron® M 600MHz (512KB L2 cache, 7W), SO-DIMM slot, CompactFlash slot, 1 Gigabit Ethernet (front), 2 USB 2.0 (front), CRT/LCD graphics (DVI-I front); operation temperature 0..+60°C |
|
|
F9, 3U 4HP 32-bit CompactPCI system slot SBC with LV Pentium® M 1.4GHz (2MB L2 cache, 10W), SO-DIMM slot, CompactFlash slot, 1 Gigabit Ethernet (front), 2 USB 2.0 (front), CRT/LCD graphics (DVI-I front); operation temperature 0..+60°C |
|
|
F9, 3U 4HP 32-bit CompactPCI system slot SBC with Pentium® M 1.8GHz (2MB L2 cache, 21W), SO-DIMM slot, CompactFlash slot, 1 Gigabit Ethernet (front), 2 USB 2.0 (front), CRT/LCD graphics (DVI-I front); operation temperature 0..+60°C |
|
F9 offers different combination possibilities with I/O extension and rear I/O cards. » 2-slot F9 with I/O extension to the right and
CompactFlash on I/O extension |
|
|
Please refer to our 3U CompactPCI compare chart for a
selection of further single-board computers with different processors and
on-board functionality. |
|
|
Systems & Card Cages |
|
|
Disk drives for basic systems are delivered as requested.
Different rack sizes, power supplies and backplanes on request. |
|
|
|
CompactPCI 19" 4U/84HP rack-mount enclosure for 3U cards (vertical), 8-slot 3U CompactPCI backplane, system slot right, prepared for rear I/O, space for hard-disk drive, floppy drive, CD-ROM drive, 300W ATX power supply wide range 100..240VAC on front, 1U fan tray with 2 fans included |
|
|
CompactPCI 19" 3U/84HP horizontal rack-mount enclosure for 6U cards, 5-slot 6U CompactPCI backplane, system slot right (bottom), prepared for rear I/O, space for hard-disk drive, floppy drive, CD-ROM drive, 300W ATX power supply wide range 100..240VAC, fan |
|
Accessories |
|
|
|
Keyboard/mouse Y-cable 0.1m, 6-pin Mini DIN plug to two 6-pin Mini DIN receptacles |
|
|
DVI-to-VGA cable, DVI plug to 15-pin HD-Sub plug, 2m, -40..+85°C |
|
|
Adapter, DVI analog plug to VGA 15-pin HD-Sub receptacle, -20..+85°C |
|
|
DVI-I to DVI-D and VGA Y-adapter cable (for example for D4, F7/N, F8, F9, P17) |
|
You can download the data sheet for hard disk 0710-0012 from MEN's website. |
|
|
|
IDE hard disk 2.5", 9.5mm, 20GB; for mounting on-board (harddisk mounting kit may be additionally required) |
|
|
Industrial IDE hard disk 2,5", 40GB, 24 hours/7 days, 0..+60°C; for on-board mounting (hard disk mounting kit may be required additionally) |
|
|
IDE hard disk 1.8", 20GB, for on-board mounting |
|
|
CompactPCI 1-slot 3U I/O midplane |
|
|
CompactFlash card, 512MB, Type I, 0..+60°C |
|
|
CompactFlash card, 512MB, Type I, -40..+85°C |
|
|
CompactFlash card, 64MB, Type I, 0..+60°C |
|
|
CompactFlash card, 128MB, Type I, 0..+60°C |
|
|
CompactFlash card, 256MB, Type I, 0..+60°C |
|
|
Compact Flash card, 64MB, -40..+85°C |
|
|
Compact Flash card, 128MB, -40..+85°C |
|
|
CompactFlash card, 256MB, Type I, -40..+85°C |
|
|
512 MB DDRAM 0..+60°C for 02F009-00 |
|
|
1 GB DDRAM 0..+60°C for 02F009-00 |
|
|
512 MB DDRAM 0..+60°C for 02F009-01 |
|
|
1 GB DDRAM 0..+60°C for 02F009-01 |
|
|
F9R, 1-slot 3U rear I/O transition module for F9 and F11 (32-bit PCI systems), with primary IDE, USB ports 3 and 4, PS/2 keyboard/mouse, COM1 (TTL level); optional: VGA analog video and Gigabit Ethernet, 0..+60°C |
|
|
Serial interface adapter, RS232, not optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS422/485, half duplex, optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS422/485, full duplex, optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS422/485, full duplex, optically isolated, temperature range: -40..+85°C |
|
|
Serial interface adapter, RS232, optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS232, optically isolated, -40..+85°C |
|
|
Serial interface adapter, TTY, optically isolated, 0..+60°C |
|
For more functions realized with SA adapters, see the listing on MEN's website. You can also view our SA adapter compare chart for a quick overview of different functions. Please contact sales to make sure that these SA adapters can
be used in the board configuration you are looking for. |
|
|
Software |
|
|
|
|
|
|
|
|
|
|
|
|
|
;)
This
MEN board is designed to work in a Microsoft® Windows® environment. For
additional Windows® driver packages provided or recommended by MEN please
refer to the ordering numbers below.
VxWorks®
software for this MEN board is available from WindRiver Systems. For VxWorks®
BSP and driver support provided by MEN please refer to the ordering numbers
below.
This
board is an MEN product running Linux. For Linux BSP and driver support
provided by MEN please refer to the ordering numbers below.
To
use MDIS4 low-level drivers, you also need one of the MDIS4 system packages
available for Windows®, Linux, VxWorks®, QNX®, RTX or OS-9 (MDIS4 = MEN
Driver Interface System).
